1. Chemical Framework and Molecular Mechanism
1.1 Synthesis and Molecular Architecture

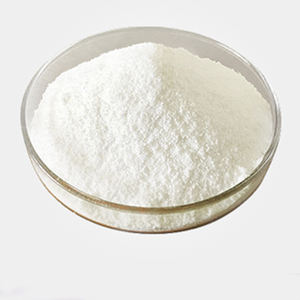

(Naphthalene Sulfonate Superplasticizer)
Naphthalene sulfonate formaldehyde condensate (NSF), frequently called naphthalene sulfonate superplasticizer, is a synthetic water-reducing admixture extensively utilized in high-performance concrete to boost flowability without compromising architectural stability.
It is produced through a multi-step chemical process including the sulfonation of naphthalene with focused sulfuric acid to develop naphthalene sulfonic acid, followed by formaldehyde condensation under regulated temperature and pH problems to produce a polymer with duplicating fragrant devices linked by methylene bridges.
The resulting particle features a hydrophobic naphthalene foundation and several hydrophilic sulfonate (-SO THREE ⁻) groups, developing a comb-like polyelectrolyte framework that enables strong interaction with concrete bits in liquid settings.
This amphiphilic architecture is central to its distributing function, allowing the polymer to adsorb onto the surface of cement hydrates and pass on electrostatic repulsion in between bits.
The level of sulfonation and polymerization can be adjusted during synthesis to tailor the molecular weight and fee thickness, directly influencing dispersion effectiveness and compatibility with different cement types.
1.2 Diffusion Mechanism in Cementitious Systems
When contributed to fresh concrete, NSF features primarily through electrostatic repulsion, a system distinctive from steric barrier employed by more recent polycarboxylate-based superplasticizers.
Upon mixing, the hydrophobic naphthalene rings adsorb onto the favorably charged sites of tricalcium silicate (C THREE S) and various other cement phases, while the adversely billed sulfonate groups prolong into the pore remedy, creating a solid negative surface possibility.
This generates an electric dual layer around each concrete bit, triggering them to repel one another and counteracting the all-natural propensity of great fragments to flocculate as a result of van der Waals forces.
Consequently, the entrapped water within flocs is released, increasing the fluidness of the mix and enabling considerable reductions in water material– typically 15– 25%– while keeping workability.
This enhanced diffusion causes an extra homogeneous microstructure, lowered porosity, and boosted mechanical stamina development gradually.
Nevertheless, the effectiveness of NSF lessens with extended mixing or high temperatures because of desorption and depression loss, a limitation that affects its application in long-haul transport or warm climates.

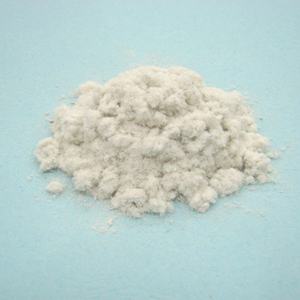

( Naphthalene Sulfonate Superplasticizer)
2. Efficiency Characteristics and Engineering Conveniences
2.1 Workability and Flow Improvement
Among one of the most instant advantages of naphthalene sulfonate superplasticizer is its capacity to significantly enhance the slump of concrete, making it very flowable and easy to place, pump, and settle, particularly in densely enhanced structures.
This improved workability permits the building of complicated building types and lowers the need for mechanical resonance, minimizing labor prices and the threat of honeycombing or spaces.
NSF is particularly efficient in generating self-consolidating concrete (SCC) when utilized in combination with viscosity-modifying representatives and other admixtures, making sure full mold and mildew filling up without segregation.
The level of fluidness gain depends upon dose, usually ranging from 0.5% to 2.0% by weight of cement, beyond which diminishing returns or even retardation may happen.
Unlike some organic plasticizers, NSF does not introduce too much air entrainment, protecting the thickness and sturdiness of the final product.
2.2 Strength and Sturdiness Improvements
By allowing reduced water-to-cement (w/c) ratios, NSF plays a crucial function in boosting both very early and long-term compressive and flexural strength of concrete.
A reduced w/c proportion reduces capillary porosity, causing a denser, much less absorptive matrix that stands up to the ingress of chlorides, sulfates, and wetness– crucial factors in avoiding reinforcement corrosion and sulfate strike.
This improved impermeability extends service life in hostile settings such as aquatic structures, bridges, and wastewater treatment centers.
In addition, the consistent diffusion of concrete fragments promotes more total hydration, speeding up strength gain and minimizing shrinking splitting dangers.
Research studies have actually shown that concrete including NSF can attain 20– 40% higher compressive toughness at 28 days contrasted to control blends, depending upon mix design and healing problems.
3. Compatibility and Application Considerations
3.1 Communication with Cement and Supplementary Materials
The performance of naphthalene sulfonate superplasticizer can vary substantially relying on the make-up of the cement, specifically the C THREE A (tricalcium aluminate) content and alkali degrees.
Concretes with high C THREE An often tend to adsorb even more NSF as a result of stronger electrostatic interactions, potentially needing greater does to accomplish the wanted fluidness.
Likewise, the presence of auxiliary cementitious materials (SCMs) such as fly ash, slag, or silica fume impacts adsorption kinetics and rheological actions; for instance, fly ash can contend for adsorption sites, changing the effective dose.
Mixing NSF with various other admixtures like retarders, accelerators, or air-entraining representatives calls for careful compatibility testing to avoid negative interactions such as fast downturn loss or flash set.
Batching sequence– whether NSF is included before, throughout, or after blending– also influences diffusion efficiency and have to be standardized in large-scale operations.
3.2 Environmental and Handling Variables
NSF is offered in fluid and powder forms, with liquid formulas offering simpler application and faster dissolution in mixing water.
While normally steady under regular storage space conditions, extended direct exposure to freezing temperature levels can create rainfall, and high warmth may degrade the polymer chains gradually.
From an environmental standpoint, NSF is thought about reduced toxicity and non-corrosive, though proper handling methods need to be followed to avoid breathing of powder or skin irritability.
Its manufacturing entails petrochemical derivatives and formaldehyde, increasing sustainability worries that have actually driven research right into bio-based options and greener synthesis courses.
4. Industrial Applications and Future Expectation
4.1 Usage in Precast, Ready-Mix, and High-Strength Concrete
Naphthalene sulfonate superplasticizer is extensively made use of in precast concrete manufacturing, where specific control over setting time, surface area finish, and dimensional precision is necessary.
In ready-mixed concrete, it enables long-distance transportation without compromising workability upon arrival at building and construction websites.
It is likewise a crucial component in high-strength concrete (HSC) and ultra-high-performance concrete (UHPC), where extremely reduced w/c ratios are called for to achieve compressive staminas exceeding 100 MPa.
Passage linings, skyscrapers, and prestressed concrete aspects benefit from the boosted toughness and architectural performance provided by NSF-modified blends.
4.2 Patterns and Challenges in Admixture Technology
Regardless of the emergence of more advanced polycarboxylate ether (PCE) superplasticizers with remarkable depression retention and lower dose requirements, NSF remains extensively made use of as a result of its cost-effectiveness and tested efficiency.
Ongoing research focuses on crossbreed systems combining NSF with PCEs or nanomaterials to maximize rheology and strength growth.
Efforts to boost biodegradability, lower formaldehyde discharges throughout production, and improve compatibility with low-carbon cements mirror the market’s change toward lasting building materials.
To conclude, naphthalene sulfonate superplasticizer represents a foundation innovation in contemporary concrete design, bridging the space between traditional techniques and advanced product efficiency.
Its capacity to change concrete right into an extremely convenient yet resilient composite continues to support international infrastructure growth, even as next-generation admixtures advance.
