1. Make-up and Architectural Features of Fused Quartz
1.1 Amorphous Network and Thermal Security

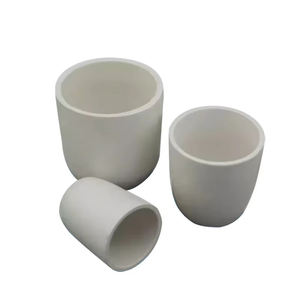

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from fused silica, a synthetic type of silicon dioxide (SiO TWO) derived from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, integrated silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts remarkable thermal shock resistance and dimensional stability under fast temperature level adjustments.
This disordered atomic structure protects against bosom along crystallographic aircrafts, making fused silica much less prone to fracturing throughout thermal biking contrasted to polycrystalline ceramics.
The material exhibits a low coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), one of the lowest among engineering materials, allowing it to endure severe thermal gradients without fracturing– a crucial residential property in semiconductor and solar cell manufacturing.
Merged silica additionally keeps exceptional chemical inertness against most acids, molten steels, and slags, although it can be gradually engraved by hydrofluoric acid and warm phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending on pureness and OH content) permits sustained operation at elevated temperatures required for crystal development and steel refining procedures.
1.2 Purity Grading and Micronutrient Control
The efficiency of quartz crucibles is highly dependent on chemical pureness, particularly the concentration of metal impurities such as iron, salt, potassium, aluminum, and titanium.
Also trace quantities (components per million degree) of these impurities can move right into liquified silicon throughout crystal growth, degrading the electrical homes of the resulting semiconductor material.
High-purity grades utilized in electronics manufacturing usually contain over 99.95% SiO ₂, with alkali metal oxides limited to much less than 10 ppm and shift steels below 1 ppm.
Contaminations originate from raw quartz feedstock or processing equipment and are reduced with cautious selection of mineral sources and filtration techniques like acid leaching and flotation.
Furthermore, the hydroxyl (OH) web content in merged silica affects its thermomechanical behavior; high-OH types supply far better UV transmission however lower thermal security, while low-OH versions are chosen for high-temperature applications as a result of reduced bubble formation.

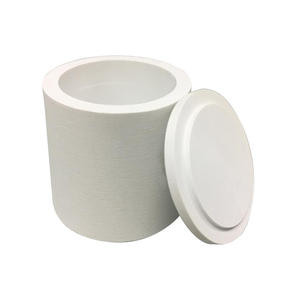

( Quartz Crucibles)
2. Production Refine and Microstructural Design
2.1 Electrofusion and Forming Techniques
Quartz crucibles are largely created using electrofusion, a process in which high-purity quartz powder is fed right into a revolving graphite mold within an electrical arc heater.
An electrical arc generated in between carbon electrodes melts the quartz bits, which strengthen layer by layer to form a smooth, thick crucible form.
This technique generates a fine-grained, homogeneous microstructure with marginal bubbles and striae, vital for consistent warm distribution and mechanical honesty.
Alternate approaches such as plasma blend and fire fusion are made use of for specialized applications needing ultra-low contamination or certain wall surface thickness profiles.
After casting, the crucibles undergo controlled cooling (annealing) to relieve inner stresses and stop spontaneous splitting during service.
Surface area finishing, including grinding and polishing, makes sure dimensional precision and minimizes nucleation websites for unwanted formation throughout use.
2.2 Crystalline Layer Engineering and Opacity Control
A specifying function of modern-day quartz crucibles, especially those used in directional solidification of multicrystalline silicon, is the crafted inner layer structure.
Throughout manufacturing, the inner surface area is frequently dealt with to advertise the formation of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon initial heating.
This cristobalite layer acts as a diffusion obstacle, lowering straight interaction in between liquified silicon and the underlying integrated silica, thus minimizing oxygen and metallic contamination.
Furthermore, the visibility of this crystalline stage boosts opacity, enhancing infrared radiation absorption and advertising even more consistent temperature level distribution within the thaw.
Crucible developers thoroughly balance the density and continuity of this layer to avoid spalling or splitting due to quantity changes during phase shifts.
3. Functional Performance in High-Temperature Applications
3.1 Role in Silicon Crystal Growth Processes
Quartz crucibles are essential in the production of monocrystalline and multicrystalline silicon, functioning as the primary container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped into liquified silicon kept in a quartz crucible and slowly pulled upwards while revolving, enabling single-crystal ingots to develop.
Although the crucible does not straight speak to the growing crystal, communications in between molten silicon and SiO ₂ walls cause oxygen dissolution into the thaw, which can affect provider life time and mechanical toughness in completed wafers.
In DS processes for photovoltaic-grade silicon, large quartz crucibles allow the controlled cooling of hundreds of kgs of molten silicon into block-shaped ingots.
Below, layers such as silicon nitride (Si three N ₄) are related to the inner surface to avoid attachment and facilitate very easy release of the strengthened silicon block after cooling down.
3.2 Deterioration Systems and Service Life Limitations
Regardless of their effectiveness, quartz crucibles degrade during duplicated high-temperature cycles as a result of several related systems.
Viscous circulation or contortion takes place at extended direct exposure above 1400 ° C, resulting in wall thinning and loss of geometric honesty.
Re-crystallization of integrated silica right into cristobalite generates interior stress and anxieties because of quantity expansion, possibly creating fractures or spallation that infect the melt.
Chemical erosion emerges from decrease responses in between molten silicon and SiO TWO: SiO TWO + Si → 2SiO(g), generating unstable silicon monoxide that escapes and compromises the crucible wall.
Bubble development, driven by caught gases or OH teams, even more compromises structural stamina and thermal conductivity.
These deterioration paths restrict the variety of reuse cycles and require exact process control to maximize crucible lifespan and product return.
4. Arising Advancements and Technical Adaptations
4.1 Coatings and Composite Modifications
To improve performance and sturdiness, progressed quartz crucibles integrate useful coverings and composite structures.
Silicon-based anti-sticking layers and drugged silica layers enhance release attributes and decrease oxygen outgassing throughout melting.
Some makers incorporate zirconia (ZrO ₂) particles right into the crucible wall to raise mechanical stamina and resistance to devitrification.
Research is continuous right into totally transparent or gradient-structured crucibles made to optimize induction heat transfer in next-generation solar heater layouts.
4.2 Sustainability and Recycling Challenges
With boosting demand from the semiconductor and solar industries, sustainable use quartz crucibles has become a concern.
Used crucibles infected with silicon deposit are tough to reuse because of cross-contamination dangers, resulting in significant waste generation.
Initiatives concentrate on establishing reusable crucible linings, improved cleaning procedures, and closed-loop recycling systems to recuperate high-purity silica for second applications.
As gadget efficiencies demand ever-higher product pureness, the duty of quartz crucibles will remain to develop with development in materials science and procedure engineering.
In recap, quartz crucibles stand for a critical user interface in between resources and high-performance electronic items.
Their unique combination of pureness, thermal strength, and structural design makes it possible for the fabrication of silicon-based innovations that power contemporary computer and renewable resource systems.
