1. Material Fundamentals and Microstructural Characteristics
1.1 Structure and Crystallographic Feature of Al Two O ₃
(Alumina Ceramic Balls， Alumina Ceramic Balls)

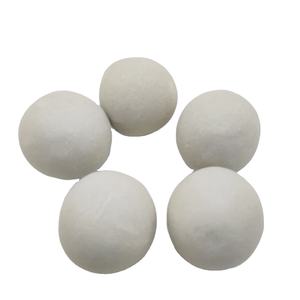

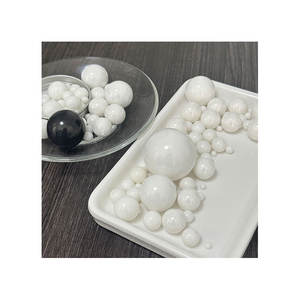

Alumina ceramic spheres are round parts made from aluminum oxide (Al ₂ O THREE), a totally oxidized, polycrystalline ceramic that shows outstanding hardness, chemical inertness, and thermal stability.
The main crystalline phase in high-performance alumina balls is α-alumina, which adopts a corundum-type hexagonal close-packed structure where light weight aluminum ions occupy two-thirds of the octahedral interstices within an oxygen anion lattice, providing high lattice energy and resistance to phase transformation.
Industrial-grade alumina balls commonly include 85% to 99.9% Al Two O FIVE, with pureness directly influencing mechanical toughness, wear resistance, and corrosion efficiency.
High-purity qualities (≥ 95% Al ₂ O TWO) are sintered to near-theoretical thickness (> 99%) using sophisticated strategies such as pressureless sintering or warm isostatic pressing, decreasing porosity and intergranular flaws that can function as stress concentrators.
The resulting microstructure contains fine, equiaxed grains evenly distributed throughout the volume, with grain sizes typically ranging from 1 to 5 micrometers, maximized to balance strength and firmness.
1.2 Mechanical and Physical Building Account
Alumina ceramic spheres are renowned for their extreme solidity– determined at about 1800– 2000 HV on the Vickers scale– going beyond most steels and matching tungsten carbide, making them optimal for wear-intensive environments.
Their high compressive toughness (as much as 2500 MPa) makes certain dimensional security under load, while reduced flexible deformation enhances accuracy in rolling and grinding applications.
In spite of their brittleness relative to steels, alumina spheres exhibit excellent fracture sturdiness for ceramics, specifically when grain growth is controlled during sintering.
They preserve architectural stability throughout a broad temperature level array, from cryogenic problems as much as 1600 ° C in oxidizing environments, far exceeding the thermal limits of polymer or steel counterparts.
Additionally, their reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) decreases thermal shock sensitivity, enabling use in rapidly changing thermal settings such as kilns and warmth exchangers.
2. Manufacturing Processes and Quality Assurance
()
2.1 Shaping and Sintering Techniques
The manufacturing of alumina ceramic spheres begins with high-purity alumina powder, commonly originated from calcined bauxite or chemically precipitated hydrates, which is crushed to attain submicron fragment dimension and slim size distribution.
Powders are then formed right into spherical green bodies using methods such as extrusion-spheronization, spray drying out, or round developing in rotating frying pans, depending upon the desired dimension and batch range.
After forming, eco-friendly rounds go through a binder fatigue stage adhered to by high-temperature sintering, generally between 1500 ° C and 1700 ° C, where diffusion devices drive densification and grain coarsening.
Precise control of sintering atmosphere (air or regulated oxygen partial pressure), heating price, and dwell time is important to attaining uniform contraction, spherical geometry, and minimal inner problems.
For ultra-high-performance applications, post-sintering treatments such as warm isostatic pushing (HIP) might be put on get rid of recurring microporosity and even more improve mechanical reliability.
2.2 Accuracy Finishing and Metrological Confirmation
Following sintering, alumina rounds are ground and brightened using diamond-impregnated media to accomplish limited dimensional tolerances and surface finishes equivalent to bearing-grade steel balls.
Surface area roughness is usually minimized to less than 0.05 μm Ra, minimizing friction and use in vibrant contact scenarios.
Crucial high quality parameters consist of sphericity (discrepancy from best roundness), diameter variant, surface area stability, and density uniformity, all of which are gauged using optical interferometry, coordinate determining equipments (CMM), and laser profilometry.
International requirements such as ISO 3290 and ANSI/ABMA specify resistance grades for ceramic balls utilized in bearings, ensuring interchangeability and efficiency consistency throughout suppliers.
Non-destructive screening approaches like ultrasonic inspection or X-ray microtomography are used to identify inner cracks, voids, or inclusions that could compromise lasting dependability.
3. Useful Benefits Over Metallic and Polymer Counterparts
3.1 Chemical and Rust Resistance in Harsh Environments
One of one of the most significant benefits of alumina ceramic balls is their impressive resistance to chemical attack.
They continue to be inert in the existence of strong acids (except hydrofluoric acid), antacid, organic solvents, and saline solutions, making them suitable for use in chemical handling, pharmaceutical manufacturing, and aquatic applications where metal elements would certainly wear away swiftly.
This inertness prevents contamination of sensitive media, an important consider food handling, semiconductor construction, and biomedical equipment.
Unlike steel balls, alumina does not produce rust or metallic ions, ensuring procedure purity and minimizing maintenance regularity.
Their non-magnetic nature additionally extends applicability to MRI-compatible tools and electronic production line where magnetic interference should be avoided.
3.2 Put On Resistance and Long Life Span
In rough or high-cycle environments, alumina ceramic balls display wear rates orders of magnitude lower than steel or polymer alternatives.
This exceptional sturdiness translates right into extended service intervals, lowered downtime, and lower total cost of ownership in spite of greater preliminary purchase costs.
They are extensively utilized as grinding media in round mills for pigment diffusion, mineral processing, and nanomaterial synthesis, where their inertness stops contamination and their firmness guarantees effective bit size decrease.
In mechanical seals and valve components, alumina balls keep tight tolerances over numerous cycles, resisting disintegration from particulate-laden liquids.
4. Industrial and Emerging Applications
4.1 Bearings, Valves, and Fluid Handling Systems
Alumina ceramic spheres are indispensable to hybrid ball bearings, where they are coupled with steel or silicon nitride races to combine the reduced thickness and corrosion resistance of ceramics with the toughness of metals.
Their low density (~ 3.9 g/cm FOUR, concerning 40% lighter than steel) lowers centrifugal packing at high rotational rates, enabling much faster procedure with reduced warmth generation and improved power effectiveness.
Such bearings are used in high-speed pins, oral handpieces, and aerospace systems where dependability under extreme problems is vital.
In fluid control applications, alumina rounds serve as check valve components in pumps and metering gadgets, particularly for hostile chemicals, high-purity water, or ultra-high vacuum systems.
Their smooth surface area and dimensional security make certain repeatable sealing performance and resistance to galling or taking.
4.2 Biomedical, Energy, and Advanced Technology Utilizes
Beyond typical industrial functions, alumina ceramic balls are locating use in biomedical implants and diagnostic tools due to their biocompatibility and radiolucency.
They are used in artificial joints and dental prosthetics where wear debris should be lessened to avoid inflammatory actions.
In power systems, they work as inert tracers in reservoir characterization or as heat-stable elements in concentrated solar power and fuel cell assemblies.
Study is also checking out functionalized alumina spheres for catalytic assistance, sensor components, and precision calibration standards in assessment.
In summary, alumina ceramic rounds exhibit how sophisticated ceramics bridge the void in between structural effectiveness and useful accuracy.
Their unique mix of firmness, chemical inertness, thermal stability, and dimensional accuracy makes them indispensable in demanding engineering systems throughout varied fields.
As manufacturing strategies continue to boost, their efficiency and application extent are expected to broaden even more right into next-generation innovations.
