1. Material Principles and Microstructural Style
1.1 Composition and Crystallographic Security of Alumina

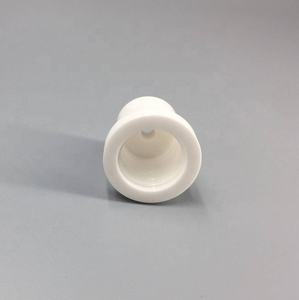

(Alumina Ceramic Nozzles)
Alumina (Al ₂ O FOUR), specifically in its alpha stage, is a fully oxidized ceramic with a corundum-type hexagonal close-packed framework, using extraordinary thermal security, chemical inertness, and mechanical toughness at elevated temperatures.
High-purity alumina (commonly 95– 99.9% Al ₂ O THREE) is favored for nozzle applications because of its marginal impurity material, which minimizes grain limit weakening and enhances resistance to thermal and chemical degradation.
The microstructure, containing penalty, equiaxed grains, is crafted throughout sintering to minimize porosity and optimize thickness, directly influencing the nozzle’s erosion resistance and architectural honesty under high-velocity fluid circulation.
Ingredients such as MgO are often presented in trace amounts to inhibit unusual grain growth throughout sintering, guaranteeing an uniform microstructure that sustains lasting integrity.
1.2 Mechanical and Thermal Qualities Relevant to Nozzle Efficiency
Alumina porcelains display a Vickers firmness surpassing 1800 HV, making them extremely immune to rough wear from particulate-laden liquids, a critical characteristic in applications such as sandblasting and unpleasant waterjet cutting.
With a flexural strength of 300– 500 MPa and a compressive strength over 2 Grade point average, alumina nozzles keep dimensional security under high-pressure operation, usually varying from 100 to 400 MPa in commercial systems.
Thermally, alumina maintains its mechanical homes up to 1600 ° C, with a low thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) that provides excellent resistance to thermal shock– essential when revealed to rapid temperature changes throughout start-up or shutdown cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without inducing thermal gradients that can result in breaking, balancing insulation and warm monitoring requirements.
2. Manufacturing Processes and Geometric Accuracy
2.1 Shaping and Sintering Techniques for Nozzle Construction
The production of alumina ceramic nozzles starts with high-purity alumina powder, which is processed right into an eco-friendly body using techniques such as chilly isostatic pressing (CIP), injection molding, or extrusion, depending upon the desired geometry and batch dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pressing applies uniform pressure from all instructions, yielding an uniform density circulation vital for lessening issues during sintering.
Injection molding is utilized for intricate nozzle shapes with inner tapers and great orifices, permitting high dimensional precision and reproducibility in mass production.
After forming, the environment-friendly compacts go through a two-stage thermal therapy: debinding to get rid of organic binders and sintering at temperatures in between 1500 ° C and 1650 ° C to attain near-theoretical density via solid-state diffusion.
Specific control of sintering environment and heating/cooling rates is necessary to protect against warping, fracturing, or grain coarsening that can compromise nozzle efficiency.
2.2 Machining, Polishing, and Quality Assurance
Post-sintering, alumina nozzles commonly need precision machining to achieve limited resistances, especially in the orifice area where flow characteristics are most conscious surface coating and geometry.
Diamond grinding and lapping are made use of to refine interior and outside surfaces, achieving surface area roughness values below 0.1 µm, which decreases flow resistance and prevents bit accumulation.
The orifice, usually ranging from 0.3 to 3.0 mm in diameter, must be without micro-cracks and chamfers to ensure laminar flow and consistent spray patterns.
Non-destructive testing methods such as optical microscopy, X-ray examination, and pressure cycling tests are employed to confirm structural integrity and efficiency uniformity before implementation.
Customized geometries, including convergent-divergent (de Laval) profiles for supersonic circulation or multi-hole varieties for follower spray patterns, are significantly produced using advanced tooling and computer-aided style (CAD)-driven production.
3. Practical Advantages Over Alternative Nozzle Materials
3.1 Superior Erosion and Corrosion Resistance
Contrasted to metal (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina displays much better resistance to rough wear, specifically in environments including silica sand, garnet, or various other hard abrasives used in surface area prep work and cutting.
Metal nozzles weaken rapidly due to micro-fracturing and plastic contortion, needing constant replacement, whereas alumina nozzles can last 3– 5 times much longer, substantially minimizing downtime and functional expenses.
In addition, alumina is inert to a lot of acids, alkalis, and solvents, making it ideal for chemical splashing, etching, and cleaning processes where metallic components would wear away or pollute the liquid.
This chemical security is specifically valuable in semiconductor production, pharmaceutical handling, and food-grade applications needing high purity.
3.2 Thermal and Electric Insulation Residence
Alumina’s high electrical resistivity (> 10 ¹⁴ Ω · centimeters) makes it excellent for usage in electrostatic spray covering systems, where it stops charge leakage and guarantees consistent paint atomization.
Its thermal insulation ability enables safe procedure in high-temperature spraying settings, such as fire spraying or thermal cleaning, without warm transfer to bordering elements.
Unlike metals, alumina does not militarize undesirable chain reaction in responsive liquid streams, maintaining the integrity of sensitive solutions.
4. Industrial Applications and Technological Effect
4.1 Roles in Abrasive Jet Machining and Surface Treatment
Alumina ceramic nozzles are indispensable in rough blasting systems for corrosion elimination, paint stripping, and surface area texturing in automotive, aerospace, and construction sectors.
Their capacity to maintain a regular orifice diameter over expanded use makes certain uniform rough rate and impact angle, directly affecting surface area coating top quality and process repeatability.
In rough waterjet cutting, alumina concentrating tubes assist the high-pressure water-abrasive combination, enduring erosive forces that would quickly break down softer materials.
4.2 Use in Additive Production, Spray Layer, and Liquid Control
In thermal spray systems, such as plasma and fire splashing, alumina nozzles straight high-temperature gas flows and molten particles onto substrates, benefiting from their thermal shock resistance and dimensional stability.
They are additionally utilized in accuracy spray nozzles for farming chemicals, inkjet systems, and gas atomization, where wear resistance makes sure long-lasting application accuracy.
In 3D printing, specifically in binder jetting and material extrusion, alumina nozzles deliver great powders or thick pastes with minimal obstructing or put on.
Emerging applications include microfluidic systems and lab-on-a-chip gadgets, where miniaturized alumina components use durability and biocompatibility.
In summary, alumina ceramic nozzles stand for a vital intersection of materials scientific research and industrial engineering.
Their remarkable mix of firmness, thermal stability, and chemical resistance makes it possible for trusted performance in a few of the most demanding liquid handling atmospheres.
As industrial procedures press towards greater stress, finer tolerances, and longer solution intervals, alumina ceramics remain to establish the requirement for durable, high-precision circulation control parts.
5. Distributor
Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina ceramics, please feel free to contact us. (nanotrun@yahoo.com)
