1. Material Properties and Structural Integrity
1.1 Intrinsic Qualities of Silicon Carbide

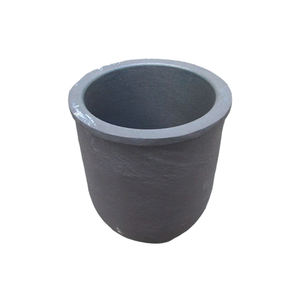

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms organized in a tetrahedral lattice structure, mostly existing in over 250 polytypic types, with 6H, 4H, and 3C being one of the most technically relevant.
Its strong directional bonding imparts remarkable firmness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure single crystals), and outstanding chemical inertness, making it among one of the most robust products for severe environments.
The large bandgap (2.9– 3.3 eV) guarantees excellent electric insulation at space temperature and high resistance to radiation damages, while its reduced thermal development coefficient (~ 4.0 × 10 ⁻⁶/ K) contributes to superior thermal shock resistance.
These intrinsic residential properties are maintained even at temperature levels going beyond 1600 ° C, permitting SiC to maintain structural stability under long term direct exposure to thaw steels, slags, and responsive gases.
Unlike oxide porcelains such as alumina, SiC does not respond readily with carbon or kind low-melting eutectics in decreasing ambiences, a crucial benefit in metallurgical and semiconductor handling.
When fabricated into crucibles– vessels made to contain and warm products– SiC surpasses typical products like quartz, graphite, and alumina in both life-span and process reliability.
1.2 Microstructure and Mechanical Stability
The efficiency of SiC crucibles is closely connected to their microstructure, which relies on the production approach and sintering ingredients made use of.
Refractory-grade crucibles are typically generated using reaction bonding, where porous carbon preforms are infiltrated with molten silicon, forming β-SiC via the response Si(l) + C(s) → SiC(s).
This process yields a composite structure of key SiC with residual cost-free silicon (5– 10%), which improves thermal conductivity yet may restrict use over 1414 ° C(the melting point of silicon).
Additionally, fully sintered SiC crucibles are made via solid-state or liquid-phase sintering utilizing boron and carbon or alumina-yttria additives, achieving near-theoretical density and greater pureness.
These display premium creep resistance and oxidation security but are more costly and challenging to fabricate in plus sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlacing microstructure of sintered SiC gives excellent resistance to thermal exhaustion and mechanical erosion, vital when taking care of liquified silicon, germanium, or III-V substances in crystal development procedures.
Grain boundary design, consisting of the control of secondary phases and porosity, plays a vital function in determining long-lasting durability under cyclic home heating and hostile chemical environments.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Warmth Distribution
One of the specifying benefits of SiC crucibles is their high thermal conductivity, which allows rapid and uniform warm transfer throughout high-temperature processing.
In comparison to low-conductivity products like merged silica (1– 2 W/(m · K)), SiC efficiently disperses thermal energy throughout the crucible wall surface, minimizing localized locations and thermal slopes.
This harmony is essential in processes such as directional solidification of multicrystalline silicon for photovoltaics, where temperature homogeneity straight influences crystal top quality and issue thickness.
The combination of high conductivity and low thermal expansion results in an incredibly high thermal shock criterion (R = k(1 − ν)α/ σ), making SiC crucibles immune to breaking throughout quick home heating or cooling down cycles.
This allows for faster heater ramp rates, enhanced throughput, and reduced downtime as a result of crucible failing.
In addition, the material’s ability to endure duplicated thermal biking without substantial degradation makes it perfect for set handling in industrial furnaces operating above 1500 ° C.
2.2 Oxidation and Chemical Compatibility
At raised temperature levels in air, SiC goes through passive oxidation, creating a protective layer of amorphous silica (SiO ₂) on its surface: SiC + 3/2 O TWO → SiO ₂ + CO.
This lustrous layer densifies at high temperatures, working as a diffusion barrier that slows down additional oxidation and protects the underlying ceramic structure.
However, in lowering atmospheres or vacuum problems– usual in semiconductor and steel refining– oxidation is reduced, and SiC remains chemically stable versus molten silicon, light weight aluminum, and many slags.
It resists dissolution and reaction with molten silicon as much as 1410 ° C, although long term exposure can bring about mild carbon pickup or interface roughening.
Crucially, SiC does not present metallic pollutants into delicate melts, a key need for electronic-grade silicon production where contamination by Fe, Cu, or Cr needs to be kept listed below ppb degrees.
Nevertheless, treatment needs to be taken when refining alkaline planet steels or extremely responsive oxides, as some can rust SiC at severe temperature levels.
3. Production Processes and Quality Control
3.1 Construction Strategies and Dimensional Control
The production of SiC crucibles involves shaping, drying, and high-temperature sintering or seepage, with techniques picked based upon required pureness, dimension, and application.
Usual forming methods include isostatic pressing, extrusion, and slip spreading, each using various levels of dimensional accuracy and microstructural harmony.
For large crucibles used in solar ingot casting, isostatic pressing makes certain consistent wall surface thickness and density, reducing the threat of uneven thermal development and failure.
Reaction-bonded SiC (RBSC) crucibles are cost-efficient and commonly used in factories and solar sectors, though residual silicon limitations maximum service temperature.
Sintered SiC (SSiC) variations, while more costly, offer remarkable purity, strength, and resistance to chemical strike, making them appropriate for high-value applications like GaAs or InP crystal development.
Precision machining after sintering might be needed to accomplish limited tolerances, specifically for crucibles used in vertical slope freeze (VGF) or Czochralski (CZ) systems.
Surface ending up is vital to decrease nucleation websites for problems and guarantee smooth thaw circulation during casting.
3.2 Quality Control and Efficiency Recognition
Extensive quality control is important to make sure integrity and durability of SiC crucibles under demanding operational problems.
Non-destructive analysis techniques such as ultrasonic screening and X-ray tomography are employed to identify internal splits, spaces, or thickness variations.
Chemical evaluation using XRF or ICP-MS confirms low degrees of metal contaminations, while thermal conductivity and flexural stamina are measured to validate product uniformity.
Crucibles are frequently based on substitute thermal biking tests prior to delivery to recognize potential failure settings.
Set traceability and qualification are basic in semiconductor and aerospace supply chains, where part failing can bring about costly production losses.
4. Applications and Technical Impact
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play an essential role in the manufacturing of high-purity silicon for both microelectronics and solar batteries.
In directional solidification heaters for multicrystalline solar ingots, big SiC crucibles function as the primary container for molten silicon, enduring temperature levels over 1500 ° C for numerous cycles.
Their chemical inertness stops contamination, while their thermal stability guarantees uniform solidification fronts, leading to higher-quality wafers with less misplacements and grain borders.
Some producers coat the inner surface area with silicon nitride or silica to additionally minimize attachment and help with ingot launch after cooling down.
In research-scale Czochralski growth of compound semiconductors, smaller sized SiC crucibles are made use of to hold thaws of GaAs, InSb, or CdTe, where marginal reactivity and dimensional stability are vital.
4.2 Metallurgy, Foundry, and Arising Technologies
Past semiconductors, SiC crucibles are indispensable in metal refining, alloy prep work, and laboratory-scale melting procedures entailing light weight aluminum, copper, and precious metals.
Their resistance to thermal shock and erosion makes them suitable for induction and resistance heating systems in foundries, where they outlast graphite and alumina choices by several cycles.
In additive production of reactive metals, SiC containers are used in vacuum induction melting to stop crucible breakdown and contamination.
Emerging applications include molten salt reactors and concentrated solar energy systems, where SiC vessels may consist of high-temperature salts or fluid metals for thermal energy storage.
With recurring advances in sintering modern technology and finish design, SiC crucibles are positioned to sustain next-generation products processing, enabling cleaner, extra effective, and scalable industrial thermal systems.
In summary, silicon carbide crucibles stand for a vital making it possible for technology in high-temperature product synthesis, combining phenomenal thermal, mechanical, and chemical efficiency in a single engineered component.
Their prevalent fostering across semiconductor, solar, and metallurgical industries underscores their role as a keystone of contemporary commercial ceramics.
