1. Material Structures and Collaborating Style
1.1 Innate Qualities of Component Phases

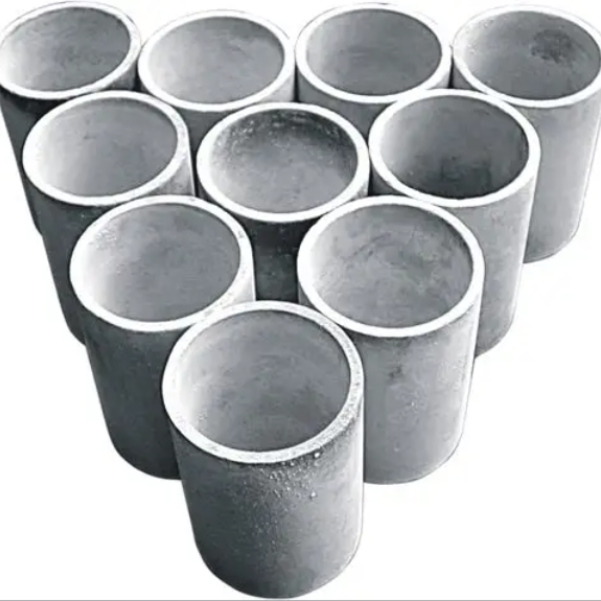

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si four N ₄) and silicon carbide (SiC) are both covalently bound, non-oxide porcelains renowned for their exceptional efficiency in high-temperature, destructive, and mechanically demanding atmospheres.
Silicon nitride displays superior fracture durability, thermal shock resistance, and creep security because of its one-of-a-kind microstructure made up of elongated β-Si three N ₄ grains that allow fracture deflection and connecting systems.
It preserves strength up to 1400 ° C and possesses a fairly low thermal growth coefficient (~ 3.2 × 10 ⁻⁶/ K), lessening thermal stresses during quick temperature level adjustments.
On the other hand, silicon carbide supplies exceptional solidity, thermal conductivity (as much as 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it optimal for rough and radiative heat dissipation applications.
Its vast bandgap (~ 3.3 eV for 4H-SiC) additionally gives excellent electric insulation and radiation tolerance, helpful in nuclear and semiconductor contexts.
When integrated into a composite, these materials exhibit complementary actions: Si ₃ N four enhances sturdiness and damage tolerance, while SiC boosts thermal monitoring and use resistance.
The resulting crossbreed ceramic attains a balance unattainable by either phase alone, creating a high-performance architectural material customized for severe service problems.
1.2 Compound Design and Microstructural Engineering
The design of Si four N ₄– SiC composites entails specific control over phase distribution, grain morphology, and interfacial bonding to take full advantage of collaborating impacts.
Typically, SiC is presented as great particulate reinforcement (ranging from submicron to 1 µm) within a Si four N four matrix, although functionally graded or split styles are also checked out for specialized applications.
Throughout sintering– generally through gas-pressure sintering (GENERAL PRACTITIONER) or hot pressing– SiC bits affect the nucleation and growth kinetics of β-Si four N ₄ grains, often advertising finer and even more evenly oriented microstructures.
This improvement boosts mechanical homogeneity and lowers imperfection dimension, contributing to enhanced toughness and dependability.
Interfacial compatibility in between both phases is crucial; due to the fact that both are covalent ceramics with comparable crystallographic symmetry and thermal growth habits, they develop meaningful or semi-coherent limits that stand up to debonding under lots.
Additives such as yttria (Y TWO O TWO) and alumina (Al two O TWO) are used as sintering help to promote liquid-phase densification of Si three N four without compromising the stability of SiC.
Nonetheless, excessive additional phases can degrade high-temperature performance, so make-up and processing have to be enhanced to minimize glassy grain limit films.
2. Handling Strategies and Densification Challenges
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Preparation and Shaping Methods
Top Notch Si ₃ N ₄– SiC composites start with uniform mixing of ultrafine, high-purity powders utilizing wet ball milling, attrition milling, or ultrasonic dispersion in organic or liquid media.
Accomplishing uniform diffusion is essential to stop jumble of SiC, which can function as stress and anxiety concentrators and decrease fracture toughness.
Binders and dispersants are contributed to stabilize suspensions for forming strategies such as slip spreading, tape spreading, or injection molding, depending on the desired component geometry.
Green bodies are after that very carefully dried out and debound to get rid of organics prior to sintering, a process calling for controlled home heating rates to prevent fracturing or warping.
For near-net-shape production, additive strategies like binder jetting or stereolithography are arising, making it possible for intricate geometries formerly unattainable with traditional ceramic handling.
These methods require tailored feedstocks with maximized rheology and environment-friendly strength, often entailing polymer-derived ceramics or photosensitive materials filled with composite powders.
2.2 Sintering Mechanisms and Phase Stability
Densification of Si Two N FOUR– SiC composites is testing as a result of the strong covalent bonding and minimal self-diffusion of nitrogen and carbon at useful temperature levels.
Liquid-phase sintering making use of rare-earth or alkaline earth oxides (e.g., Y TWO O TWO, MgO) reduces the eutectic temperature and enhances mass transportation through a transient silicate melt.
Under gas stress (commonly 1– 10 MPa N TWO), this melt facilitates reformation, solution-precipitation, and last densification while subduing decomposition of Si two N FOUR.
The existence of SiC impacts viscosity and wettability of the liquid stage, possibly modifying grain development anisotropy and last appearance.
Post-sintering warmth therapies may be related to crystallize residual amorphous phases at grain boundaries, boosting high-temperature mechanical homes and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are regularly utilized to validate stage pureness, lack of unwanted additional phases (e.g., Si ₂ N ₂ O), and uniform microstructure.
3. Mechanical and Thermal Efficiency Under Lots
3.1 Toughness, Toughness, and Fatigue Resistance
Si Two N FOUR– SiC composites demonstrate remarkable mechanical performance contrasted to monolithic ceramics, with flexural strengths exceeding 800 MPa and crack toughness values reaching 7– 9 MPa · m ¹/ ².
The strengthening effect of SiC particles restrains misplacement motion and crack proliferation, while the elongated Si five N four grains continue to supply toughening with pull-out and connecting devices.
This dual-toughening method causes a material very resistant to effect, thermal cycling, and mechanical tiredness– vital for turning parts and structural aspects in aerospace and energy systems.
Creep resistance remains superb up to 1300 ° C, attributed to the security of the covalent network and reduced grain border sliding when amorphous stages are reduced.
Firmness values typically vary from 16 to 19 Grade point average, offering exceptional wear and disintegration resistance in rough settings such as sand-laden circulations or sliding contacts.
3.2 Thermal Management and Environmental Longevity
The addition of SiC substantially elevates the thermal conductivity of the composite, commonly doubling that of pure Si two N ₄ (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC material and microstructure.
This enhanced heat transfer capability allows for more effective thermal management in parts subjected to intense localized heating, such as combustion liners or plasma-facing components.
The composite retains dimensional security under steep thermal slopes, resisting spallation and cracking due to matched thermal growth and high thermal shock criterion (R-value).
Oxidation resistance is one more crucial advantage; SiC forms a protective silica (SiO TWO) layer upon direct exposure to oxygen at raised temperature levels, which better compresses and secures surface issues.
This passive layer safeguards both SiC and Si Five N FOUR (which additionally oxidizes to SiO ₂ and N TWO), making sure lasting longevity in air, heavy steam, or combustion ambiences.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Energy, and Industrial Solution
Si Two N FOUR– SiC compounds are increasingly deployed in next-generation gas wind turbines, where they make it possible for greater operating temperatures, boosted gas effectiveness, and decreased cooling demands.
Components such as wind turbine blades, combustor linings, and nozzle guide vanes take advantage of the material’s ability to endure thermal biking and mechanical loading without significant destruction.
In atomic power plants, particularly high-temperature gas-cooled reactors (HTGRs), these compounds function as gas cladding or architectural supports because of their neutron irradiation resistance and fission product retention capability.
In commercial setups, they are made use of in molten metal handling, kiln furniture, and wear-resistant nozzles and bearings, where conventional steels would certainly fall short prematurely.
Their lightweight nature (density ~ 3.2 g/cm FIVE) also makes them appealing for aerospace propulsion and hypersonic lorry elements based on aerothermal home heating.
4.2 Advanced Production and Multifunctional Integration
Arising research concentrates on creating functionally graded Si two N FOUR– SiC structures, where structure varies spatially to maximize thermal, mechanical, or electro-magnetic homes across a single component.
Hybrid systems including CMC (ceramic matrix composite) architectures with fiber support (e.g., SiC_f/ SiC– Si Three N ₄) push the boundaries of damages resistance and strain-to-failure.
Additive manufacturing of these compounds makes it possible for topology-optimized warmth exchangers, microreactors, and regenerative cooling networks with internal latticework structures unachievable by means of machining.
Furthermore, their inherent dielectric residential or commercial properties and thermal stability make them prospects for radar-transparent radomes and antenna home windows in high-speed platforms.
As demands grow for products that perform dependably under severe thermomechanical loads, Si three N ₄– SiC compounds represent a crucial improvement in ceramic engineering, merging toughness with capability in a single, sustainable platform.
To conclude, silicon nitride– silicon carbide composite ceramics exhibit the power of materials-by-design, leveraging the staminas of 2 innovative porcelains to develop a crossbreed system with the ability of thriving in the most serious functional settings.
Their proceeded growth will play a central duty beforehand tidy power, aerospace, and industrial modern technologies in the 21st century.
