1. Material Basics and Architectural Quality
1.1 Crystal Chemistry and Polymorphism

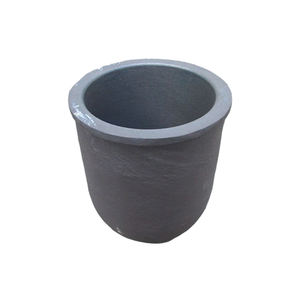

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms organized in a tetrahedral lattice, forming one of the most thermally and chemically durable products recognized.
It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most relevant for high-temperature applications.
The strong Si– C bonds, with bond power surpassing 300 kJ/mol, confer exceptional hardness, thermal conductivity, and resistance to thermal shock and chemical strike.
In crucible applications, sintered or reaction-bonded SiC is favored because of its capacity to maintain structural honesty under extreme thermal gradients and harsh molten settings.
Unlike oxide ceramics, SiC does not undergo disruptive stage shifts approximately its sublimation factor (~ 2700 ° C), making it perfect for sustained procedure above 1600 ° C.
1.2 Thermal and Mechanical Performance
A defining attribute of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which promotes consistent heat circulation and decreases thermal anxiety throughout quick home heating or air conditioning.
This residential or commercial property contrasts sharply with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are vulnerable to cracking under thermal shock.
SiC also exhibits excellent mechanical stamina at raised temperature levels, keeping over 80% of its room-temperature flexural toughness (as much as 400 MPa) even at 1400 ° C.
Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) further improves resistance to thermal shock, an essential factor in repeated biking in between ambient and operational temperatures.
In addition, SiC demonstrates superior wear and abrasion resistance, guaranteeing lengthy service life in atmospheres including mechanical handling or unstable thaw flow.
2. Manufacturing Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Strategies and Densification Approaches
Industrial SiC crucibles are largely produced through pressureless sintering, response bonding, or warm pushing, each offering unique benefits in cost, purity, and performance.
Pressureless sintering entails condensing great SiC powder with sintering aids such as boron and carbon, followed by high-temperature therapy (2000– 2200 ° C )in inert atmosphere to attain near-theoretical thickness.
This method yields high-purity, high-strength crucibles appropriate for semiconductor and progressed alloy handling.
Reaction-bonded SiC (RBSC) is created by infiltrating a porous carbon preform with molten silicon, which responds to form β-SiC sitting, leading to a compound of SiC and residual silicon.
While somewhat reduced in thermal conductivity due to metallic silicon incorporations, RBSC offers excellent dimensional security and lower manufacturing price, making it popular for large-scale industrial usage.
Hot-pressed SiC, though more pricey, provides the highest possible thickness and pureness, booked for ultra-demanding applications such as single-crystal growth.
2.2 Surface Top Quality and Geometric Accuracy
Post-sintering machining, including grinding and splashing, guarantees specific dimensional tolerances and smooth inner surface areas that decrease nucleation sites and reduce contamination risk.
Surface roughness is meticulously controlled to avoid thaw bond and facilitate very easy release of solidified products.
Crucible geometry– such as wall density, taper angle, and bottom curvature– is maximized to balance thermal mass, structural strength, and compatibility with heater burner.
Personalized designs suit certain thaw quantities, heating profiles, and material reactivity, making sure optimum efficiency throughout varied industrial processes.
Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic testing, confirms microstructural homogeneity and lack of defects like pores or fractures.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Hostile Environments
SiC crucibles display extraordinary resistance to chemical attack by molten steels, slags, and non-oxidizing salts, outperforming typical graphite and oxide ceramics.
They are steady touching liquified light weight aluminum, copper, silver, and their alloys, withstanding wetting and dissolution due to low interfacial power and formation of safety surface oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles protect against metallic contamination that can degrade electronic buildings.
However, under highly oxidizing conditions or in the existence of alkaline fluxes, SiC can oxidize to form silica (SiO TWO), which may react additionally to create low-melting-point silicates.
As a result, SiC is best matched for neutral or lowering atmospheres, where its stability is maximized.
3.2 Limitations and Compatibility Considerations
Regardless of its effectiveness, SiC is not globally inert; it reacts with specific molten materials, especially iron-group metals (Fe, Ni, Carbon monoxide) at high temperatures through carburization and dissolution processes.
In molten steel processing, SiC crucibles break down rapidly and are for that reason stayed clear of.
In a similar way, antacids and alkaline planet steels (e.g., Li, Na, Ca) can reduce SiC, releasing carbon and forming silicides, restricting their usage in battery material synthesis or reactive metal spreading.
For liquified glass and ceramics, SiC is generally suitable however might present trace silicon into highly delicate optical or digital glasses.
Understanding these material-specific communications is essential for selecting the suitable crucible kind and guaranteeing procedure pureness and crucible durability.
4. Industrial Applications and Technical Advancement
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are essential in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they endure extended exposure to thaw silicon at ~ 1420 ° C.
Their thermal stability makes sure consistent condensation and minimizes misplacement density, directly influencing photovoltaic effectiveness.
In shops, SiC crucibles are utilized for melting non-ferrous steels such as aluminum and brass, using longer life span and minimized dross formation contrasted to clay-graphite alternatives.
They are also utilized in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of sophisticated porcelains and intermetallic compounds.
4.2 Future Patterns and Advanced Product Integration
Arising applications consist of making use of SiC crucibles in next-generation nuclear products screening and molten salt reactors, where their resistance to radiation and molten fluorides is being examined.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O SIX) are being put on SiC surfaces to better improve chemical inertness and prevent silicon diffusion in ultra-high-purity processes.
Additive manufacturing of SiC elements making use of binder jetting or stereolithography is under advancement, appealing complicated geometries and fast prototyping for specialized crucible styles.
As need grows for energy-efficient, durable, and contamination-free high-temperature handling, silicon carbide crucibles will stay a foundation modern technology in innovative materials manufacturing.
In conclusion, silicon carbide crucibles stand for an essential enabling element in high-temperature commercial and clinical processes.
Their exceptional combination of thermal stability, mechanical stamina, and chemical resistance makes them the material of choice for applications where performance and integrity are critical.
