1. Crystal Framework and Polytypism of Silicon Carbide
1.1 Cubic and Hexagonal Polytypes: From 3C to 6H and Beyond
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalently adhered ceramic composed of silicon and carbon atoms arranged in a tetrahedral coordination, creating among the most intricate systems of polytypism in materials scientific research.
Unlike the majority of porcelains with a single stable crystal structure, SiC exists in over 250 well-known polytypes– distinct piling series of close-packed Si-C bilayers along the c-axis– varying from cubic 3C-SiC (additionally referred to as β-SiC) to hexagonal 6H-SiC and rhombohedral 15R-SiC.
One of the most common polytypes made use of in engineering applications are 3C (cubic), 4H, and 6H (both hexagonal), each displaying a little various electronic band frameworks and thermal conductivities.
3C-SiC, with its zinc blende structure, has the narrowest bandgap (~ 2.3 eV) and is typically grown on silicon substrates for semiconductor devices, while 4H-SiC uses remarkable electron mobility and is preferred for high-power electronics.
The strong covalent bonding and directional nature of the Si– C bond provide exceptional solidity, thermal security, and resistance to slip and chemical strike, making SiC perfect for severe atmosphere applications.
1.2 Issues, Doping, and Digital Properties
Despite its architectural intricacy, SiC can be doped to achieve both n-type and p-type conductivity, enabling its use in semiconductor tools.
Nitrogen and phosphorus serve as benefactor contaminations, introducing electrons into the conduction band, while aluminum and boron act as acceptors, creating openings in the valence band.
However, p-type doping performance is limited by high activation powers, particularly in 4H-SiC, which postures difficulties for bipolar device design.
Indigenous problems such as screw dislocations, micropipes, and piling faults can degrade device efficiency by functioning as recombination centers or leak paths, requiring top quality single-crystal development for digital applications.
The broad bandgap (2.3– 3.3 eV depending upon polytype), high break down electrical area (~ 3 MV/cm), and superb thermal conductivity (~ 3– 4 W/m · K for 4H-SiC) make SiC far superior to silicon in high-temperature, high-voltage, and high-frequency power electronics.
2. Processing and Microstructural Design

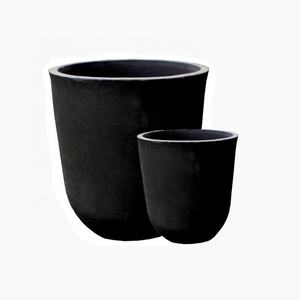

( Silicon Carbide Ceramics)
2.1 Sintering and Densification Methods
Silicon carbide is naturally tough to compress due to its strong covalent bonding and low self-diffusion coefficients, calling for sophisticated processing methods to accomplish complete thickness without additives or with marginal sintering help.
Pressureless sintering of submicron SiC powders is feasible with the enhancement of boron and carbon, which advertise densification by removing oxide layers and boosting solid-state diffusion.
Hot pressing applies uniaxial pressure during home heating, allowing complete densification at lower temperatures (~ 1800– 2000 ° C )and creating fine-grained, high-strength parts ideal for cutting tools and use parts.
For huge or complex shapes, response bonding is used, where porous carbon preforms are penetrated with molten silicon at ~ 1600 ° C, forming β-SiC in situ with marginal contraction.
However, recurring free silicon (~ 5– 10%) stays in the microstructure, restricting high-temperature efficiency and oxidation resistance over 1300 ° C.
2.2 Additive Manufacturing and Near-Net-Shape Construction
Current breakthroughs in additive manufacturing (AM), specifically binder jetting and stereolithography making use of SiC powders or preceramic polymers, allow the construction of complicated geometries previously unattainable with traditional techniques.
In polymer-derived ceramic (PDC) courses, fluid SiC forerunners are shaped through 3D printing and after that pyrolyzed at heats to produce amorphous or nanocrystalline SiC, often calling for more densification.
These techniques minimize machining prices and product waste, making SiC extra easily accessible for aerospace, nuclear, and warmth exchanger applications where intricate designs enhance performance.
Post-processing actions such as chemical vapor infiltration (CVI) or fluid silicon seepage (LSI) are occasionally utilized to enhance density and mechanical honesty.
3. Mechanical, Thermal, and Environmental Performance
3.1 Stamina, Solidity, and Wear Resistance
Silicon carbide ranks among the hardest known products, with a Mohs firmness of ~ 9.5 and Vickers solidity exceeding 25 Grade point average, making it highly resistant to abrasion, erosion, and scraping.
Its flexural toughness normally varies from 300 to 600 MPa, relying on processing technique and grain dimension, and it preserves strength at temperature levels as much as 1400 ° C in inert ambiences.
Fracture sturdiness, while modest (~ 3– 4 MPa · m 1ST/ TWO), suffices for numerous structural applications, especially when combined with fiber reinforcement in ceramic matrix composites (CMCs).
SiC-based CMCs are used in generator blades, combustor linings, and brake systems, where they use weight savings, fuel performance, and extended life span over metal counterparts.
Its excellent wear resistance makes SiC ideal for seals, bearings, pump elements, and ballistic shield, where longevity under harsh mechanical loading is crucial.
3.2 Thermal Conductivity and Oxidation Security
Among SiC’s most useful homes is its high thermal conductivity– up to 490 W/m · K for single-crystal 4H-SiC and ~ 30– 120 W/m · K for polycrystalline kinds– surpassing that of many metals and enabling effective warmth dissipation.
This home is essential in power electronic devices, where SiC tools produce less waste heat and can operate at greater power thickness than silicon-based devices.
At elevated temperature levels in oxidizing environments, SiC develops a protective silica (SiO TWO) layer that reduces more oxidation, providing great environmental durability up to ~ 1600 ° C.
Nevertheless, in water vapor-rich settings, this layer can volatilize as Si(OH)₄, causing accelerated destruction– a key challenge in gas turbine applications.
4. Advanced Applications in Energy, Electronic Devices, and Aerospace
4.1 Power Electronics and Semiconductor Devices
Silicon carbide has reinvented power electronics by allowing tools such as Schottky diodes, MOSFETs, and JFETs that run at greater voltages, regularities, and temperature levels than silicon equivalents.
These devices reduce energy losses in electrical lorries, renewable energy inverters, and commercial electric motor drives, adding to global power performance enhancements.
The capacity to operate at joint temperature levels over 200 ° C allows for streamlined air conditioning systems and enhanced system integrity.
Moreover, SiC wafers are utilized as substratums for gallium nitride (GaN) epitaxy in high-electron-mobility transistors (HEMTs), combining the advantages of both wide-bandgap semiconductors.
4.2 Nuclear, Aerospace, and Optical Solutions
In atomic power plants, SiC is a key part of accident-tolerant gas cladding, where its reduced neutron absorption cross-section, radiation resistance, and high-temperature toughness boost safety and efficiency.
In aerospace, SiC fiber-reinforced compounds are used in jet engines and hypersonic lorries for their light-weight and thermal security.
Additionally, ultra-smooth SiC mirrors are employed precede telescopes due to their high stiffness-to-density ratio, thermal stability, and polishability to sub-nanometer roughness.
In summary, silicon carbide ceramics represent a cornerstone of modern innovative products, combining outstanding mechanical, thermal, and electronic residential properties.
Via precise control of polytype, microstructure, and processing, SiC continues to allow technical developments in energy, transport, and severe environment design.
