1. Product Fundamentals and Structural Residences of Alumina Ceramics
1.1 Structure, Crystallography, and Phase Security

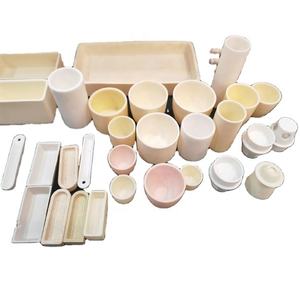

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels made mostly from aluminum oxide (Al two O SIX), among the most commonly utilized advanced porcelains because of its phenomenal mix of thermal, mechanical, and chemical stability.
The leading crystalline phase in these crucibles is alpha-alumina (α-Al ₂ O ₃), which belongs to the corundum framework– a hexagonal close-packed plan of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent aluminum ions.
This thick atomic packing results in strong ionic and covalent bonding, conferring high melting factor (2072 ° C), exceptional solidity (9 on the Mohs range), and resistance to slip and deformation at elevated temperatures.
While pure alumina is optimal for a lot of applications, trace dopants such as magnesium oxide (MgO) are typically added throughout sintering to prevent grain growth and improve microstructural harmony, consequently enhancing mechanical stamina and thermal shock resistance.
The stage purity of α-Al ₂ O two is vital; transitional alumina stages (e.g., γ, δ, θ) that develop at lower temperatures are metastable and undertake volume adjustments upon conversion to alpha stage, potentially bring about cracking or failure under thermal cycling.
1.2 Microstructure and Porosity Control in Crucible Construction
The efficiency of an alumina crucible is exceptionally affected by its microstructure, which is identified during powder handling, developing, and sintering phases.
High-purity alumina powders (normally 99.5% to 99.99% Al ₂ O TWO) are shaped right into crucible forms making use of methods such as uniaxial pushing, isostatic pressing, or slip casting, followed by sintering at temperature levels between 1500 ° C and 1700 ° C.
Throughout sintering, diffusion mechanisms drive fragment coalescence, decreasing porosity and enhancing density– preferably achieving > 99% academic thickness to minimize permeability and chemical infiltration.
Fine-grained microstructures enhance mechanical stamina and resistance to thermal anxiety, while controlled porosity (in some specific qualities) can improve thermal shock resistance by dissipating pressure energy.
Surface coating is also critical: a smooth interior surface area lessens nucleation websites for unwanted responses and promotes simple removal of strengthened materials after handling.
Crucible geometry– including wall surface density, curvature, and base design– is maximized to balance warm transfer efficiency, architectural integrity, and resistance to thermal gradients during quick heating or cooling.

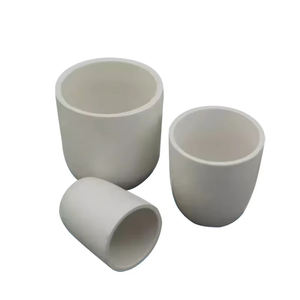

( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Efficiency and Thermal Shock Actions
Alumina crucibles are consistently employed in atmospheres surpassing 1600 ° C, making them crucial in high-temperature products research, steel refining, and crystal growth processes.
They exhibit low thermal conductivity (~ 30 W/m · K), which, while restricting warmth transfer rates, also gives a level of thermal insulation and helps maintain temperature slopes necessary for directional solidification or area melting.
A vital difficulty is thermal shock resistance– the ability to hold up against sudden temperature adjustments without fracturing.
Although alumina has a fairly reduced coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K), its high stiffness and brittleness make it susceptible to fracture when based on high thermal slopes, particularly during quick home heating or quenching.
To mitigate this, individuals are encouraged to adhere to regulated ramping procedures, preheat crucibles gradually, and prevent straight exposure to open flames or chilly surfaces.
Advanced grades include zirconia (ZrO TWO) toughening or rated compositions to boost split resistance through systems such as phase transformation toughening or residual compressive anxiety generation.
2.2 Chemical Inertness and Compatibility with Reactive Melts
Among the specifying advantages of alumina crucibles is their chemical inertness towards a wide range of molten steels, oxides, and salts.
They are highly immune to basic slags, molten glasses, and many metallic alloys, including iron, nickel, cobalt, and their oxides, which makes them suitable for usage in metallurgical analysis, thermogravimetric experiments, and ceramic sintering.
Nevertheless, they are not generally inert: alumina responds with strongly acidic fluxes such as phosphoric acid or boron trioxide at heats, and it can be corroded by molten alkalis like salt hydroxide or potassium carbonate.
Specifically essential is their communication with light weight aluminum metal and aluminum-rich alloys, which can reduce Al two O two via the reaction: 2Al + Al ₂ O ₃ → 3Al two O (suboxide), causing matching and ultimate failing.
Likewise, titanium, zirconium, and rare-earth steels exhibit high reactivity with alumina, developing aluminides or intricate oxides that jeopardize crucible honesty and contaminate the thaw.
For such applications, different crucible products like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are preferred.
3. Applications in Scientific Research Study and Industrial Processing
3.1 Role in Products Synthesis and Crystal Development
Alumina crucibles are central to countless high-temperature synthesis paths, including solid-state responses, change growth, and thaw handling of functional porcelains and intermetallics.
In solid-state chemistry, they function as inert containers for calcining powders, synthesizing phosphors, or preparing precursor products for lithium-ion battery cathodes.
For crystal growth strategies such as the Czochralski or Bridgman methods, alumina crucibles are made use of to have molten oxides like yttrium aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high purity makes certain minimal contamination of the expanding crystal, while their dimensional stability sustains reproducible growth conditions over prolonged durations.
In change development, where single crystals are grown from a high-temperature solvent, alumina crucibles need to stand up to dissolution by the change tool– commonly borates or molybdates– calling for cautious selection of crucible quality and processing parameters.
3.2 Usage in Analytical Chemistry and Industrial Melting Procedures
In analytical labs, alumina crucibles are conventional tools in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where specific mass measurements are made under controlled environments and temperature ramps.
Their non-magnetic nature, high thermal security, and compatibility with inert and oxidizing settings make them excellent for such accuracy dimensions.
In industrial setups, alumina crucibles are utilized in induction and resistance furnaces for melting rare-earth elements, alloying, and casting procedures, specifically in precious jewelry, dental, and aerospace element manufacturing.
They are also used in the production of technical porcelains, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and ensure consistent home heating.
4. Limitations, Managing Practices, and Future Material Enhancements
4.1 Functional Restrictions and Finest Practices for Durability
Despite their robustness, alumina crucibles have well-defined operational limits that should be appreciated to ensure safety and security and efficiency.
Thermal shock continues to be one of the most common root cause of failure; consequently, gradual heating and cooling cycles are vital, particularly when transitioning via the 400– 600 ° C variety where recurring stresses can build up.
Mechanical damage from mishandling, thermal biking, or call with difficult materials can launch microcracks that circulate under tension.
Cleansing need to be performed meticulously– avoiding thermal quenching or unpleasant techniques– and made use of crucibles ought to be examined for indicators of spalling, discoloration, or contortion before reuse.
Cross-contamination is another concern: crucibles made use of for responsive or hazardous products should not be repurposed for high-purity synthesis without thorough cleaning or ought to be disposed of.
4.2 Emerging Trends in Composite and Coated Alumina Systems
To prolong the capacities of typical alumina crucibles, scientists are developing composite and functionally graded products.
Instances consist of alumina-zirconia (Al two O FIVE-ZrO TWO) compounds that enhance sturdiness and thermal shock resistance, or alumina-silicon carbide (Al two O TWO-SiC) variations that improve thermal conductivity for even more uniform heating.
Surface area coverings with rare-earth oxides (e.g., yttria or scandia) are being explored to produce a diffusion obstacle versus reactive metals, thereby increasing the variety of suitable melts.
Furthermore, additive manufacturing of alumina elements is emerging, enabling customized crucible geometries with inner channels for temperature monitoring or gas flow, opening up brand-new opportunities in process control and activator layout.
Finally, alumina crucibles continue to be a foundation of high-temperature modern technology, valued for their reliability, pureness, and versatility throughout scientific and industrial domains.
Their proceeded advancement through microstructural engineering and hybrid material layout guarantees that they will remain indispensable tools in the development of materials science, energy technologies, and progressed manufacturing.
