1. Product Basics and Microstructural Characteristics of Alumina Ceramics
1.1 Composition, Pureness Grades, and Crystallographic Properties

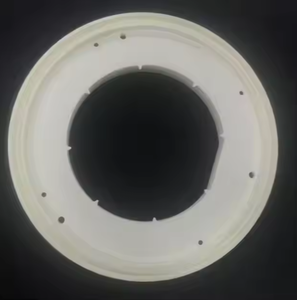

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O SIX), or aluminum oxide, is one of the most widely utilized technological ceramics in commercial engineering due to its exceptional balance of mechanical strength, chemical security, and cost-effectiveness.
When crafted into wear liners, alumina porcelains are commonly produced with pureness levels varying from 85% to 99.9%, with greater purity corresponding to enhanced hardness, wear resistance, and thermal efficiency.
The leading crystalline phase is alpha-alumina, which embraces a hexagonal close-packed (HCP) structure characterized by solid ionic and covalent bonding, adding to its high melting factor (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina porcelains consist of fine, equiaxed grains whose dimension and distribution are regulated throughout sintering to maximize mechanical residential or commercial properties.
Grain sizes usually range from submicron to numerous micrometers, with finer grains typically improving fracture toughness and resistance to split proliferation under rough packing.
Minor ingredients such as magnesium oxide (MgO) are often introduced in trace total up to inhibit irregular grain growth during high-temperature sintering, ensuring uniform microstructure and dimensional stability.
The resulting material displays a Vickers hardness of 1500– 2000 HV, substantially exceeding that of set steel (generally 600– 800 HV), making it incredibly resistant to surface area destruction in high-wear environments.
1.2 Mechanical and Thermal Efficiency in Industrial Issues
Alumina ceramic wear linings are picked mainly for their outstanding resistance to unpleasant, abrasive, and sliding wear devices prevalent in bulk material dealing with systems.
They have high compressive stamina (as much as 3000 MPa), excellent flexural stamina (300– 500 MPa), and superb rigidity (Young’s modulus of ~ 380 GPa), allowing them to hold up against intense mechanical loading without plastic contortion.
Although naturally brittle compared to steels, their low coefficient of rubbing and high surface area solidity lessen bit attachment and lower wear rates by orders of magnitude about steel or polymer-based options.
Thermally, alumina keeps architectural stability as much as 1600 ° C in oxidizing atmospheres, allowing usage in high-temperature processing atmospheres such as kiln feed systems, boiler ducting, and pyroprocessing tools.
( Alumina Ceramic Wear Liners)
Its reduced thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional stability during thermal biking, lowering the threat of breaking as a result of thermal shock when properly mounted.
Additionally, alumina is electrically insulating and chemically inert to most acids, antacid, and solvents, making it ideal for corrosive settings where metallic linings would certainly weaken swiftly.
These combined homes make alumina ceramics optimal for safeguarding crucial framework in mining, power generation, cement production, and chemical handling sectors.
2. Manufacturing Processes and Style Combination Methods
2.1 Shaping, Sintering, and Quality Assurance Protocols
The production of alumina ceramic wear liners involves a series of precision production actions developed to accomplish high density, minimal porosity, and consistent mechanical efficiency.
Raw alumina powders are refined via milling, granulation, and forming strategies such as completely dry pressing, isostatic pressing, or extrusion, relying on the desired geometry– ceramic tiles, plates, pipes, or custom-shaped segments.
Eco-friendly bodies are then sintered at temperature levels in between 1500 ° C and 1700 ° C in air, promoting densification through solid-state diffusion and accomplishing relative densities exceeding 95%, often coming close to 99% of academic thickness.
Complete densification is critical, as residual porosity acts as stress concentrators and speeds up wear and crack under solution conditions.
Post-sintering procedures may consist of ruby grinding or lapping to achieve limited dimensional resistances and smooth surface area coatings that decrease rubbing and particle capturing.
Each set undertakes rigorous quality control, including X-ray diffraction (XRD) for phase evaluation, scanning electron microscopy (SEM) for microstructural analysis, and hardness and bend testing to confirm compliance with international criteria such as ISO 6474 or ASTM B407.
2.2 Mounting Techniques and System Compatibility Factors To Consider
Effective combination of alumina wear linings right into commercial equipment requires careful interest to mechanical add-on and thermal development compatibility.
Common setup methods consist of adhesive bonding using high-strength ceramic epoxies, mechanical securing with studs or supports, and embedding within castable refractory matrices.
Sticky bonding is extensively made use of for level or gently bent surface areas, offering consistent stress distribution and resonance damping, while stud-mounted systems enable very easy substitute and are chosen in high-impact areas.
To accommodate differential thermal expansion between alumina and metallic substrates (e.g., carbon steel), engineered voids, versatile adhesives, or certified underlayers are included to stop delamination or breaking throughout thermal transients.
Developers should additionally consider side protection, as ceramic floor tiles are susceptible to damaging at revealed corners; solutions consist of diagonal sides, metal shadows, or overlapping floor tile arrangements.
Appropriate installment makes sure long life span and optimizes the protective function of the lining system.
3. Use Systems and Performance Examination in Service Environments
3.1 Resistance to Abrasive, Erosive, and Influence Loading
Alumina ceramic wear liners master settings dominated by 3 key wear mechanisms: two-body abrasion, three-body abrasion, and fragment disintegration.
In two-body abrasion, tough fragments or surfaces straight gouge the liner surface area, a typical event in chutes, hoppers, and conveyor changes.
Three-body abrasion involves loosened fragments trapped in between the liner and moving product, causing rolling and scraping action that slowly removes product.
Abrasive wear occurs when high-velocity bits strike the surface area, especially in pneumatic sharing lines and cyclone separators.
Because of its high firmness and reduced crack durability, alumina is most efficient in low-impact, high-abrasion situations.
It does remarkably well versus siliceous ores, coal, fly ash, and concrete clinker, where wear rates can be decreased by 10– 50 times contrasted to mild steel linings.
Nevertheless, in applications involving duplicated high-energy influence, such as key crusher chambers, hybrid systems integrating alumina tiles with elastomeric supports or metallic guards are typically used to take in shock and avoid crack.
3.2 Field Screening, Life Process Analysis, and Failing Setting Analysis
Efficiency evaluation of alumina wear liners includes both research laboratory screening and area surveillance.
Standard tests such as the ASTM G65 completely dry sand rubber wheel abrasion examination provide relative wear indices, while personalized slurry erosion rigs replicate site-specific conditions.
In industrial settings, wear price is generally measured in mm/year or g/kWh, with life span projections based upon first thickness and observed destruction.
Failure settings consist of surface sprucing up, micro-cracking, spalling at edges, and complete floor tile dislodgement due to sticky destruction or mechanical overload.
Origin analysis typically discloses installment errors, incorrect quality choice, or unforeseen impact loads as primary factors to early failing.
Life cycle expense analysis continually shows that despite greater first prices, alumina liners supply exceptional complete price of possession due to prolonged replacement periods, minimized downtime, and lower upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Throughout Heavy Industries
Alumina ceramic wear liners are deployed throughout a broad spectrum of industrial sectors where material degradation poses operational and financial challenges.
In mining and mineral handling, they protect transfer chutes, mill liners, hydrocyclones, and slurry pumps from rough slurries consisting of quartz, hematite, and other tough minerals.
In power plants, alumina tiles line coal pulverizer air ducts, central heating boiler ash receptacles, and electrostatic precipitator components exposed to fly ash disintegration.
Cement makers use alumina linings in raw mills, kiln inlet zones, and clinker conveyors to battle the highly unpleasant nature of cementitious materials.
The steel sector utilizes them in blast furnace feed systems and ladle shrouds, where resistance to both abrasion and modest thermal lots is crucial.
Even in much less standard applications such as waste-to-energy plants and biomass handling systems, alumina ceramics offer long lasting security against chemically aggressive and coarse products.
4.2 Arising Trends: Composite Equipments, Smart Liners, and Sustainability
Current research study concentrates on enhancing the strength and capability of alumina wear systems with composite design.
Alumina-zirconia (Al Two O THREE-ZrO TWO) compounds leverage transformation toughening from zirconia to enhance split resistance, while alumina-titanium carbide (Al two O ₃-TiC) grades provide boosted performance in high-temperature gliding wear.
An additional development entails embedding sensors within or beneath ceramic linings to keep an eye on wear progression, temperature level, and effect regularity– making it possible for anticipating maintenance and digital twin integration.
From a sustainability point of view, the prolonged life span of alumina liners minimizes material intake and waste generation, aligning with round economic situation concepts in industrial operations.
Recycling of spent ceramic liners right into refractory accumulations or building and construction products is likewise being checked out to lessen environmental impact.
In conclusion, alumina ceramic wear liners represent a keystone of modern industrial wear protection modern technology.
Their remarkable hardness, thermal security, and chemical inertness, incorporated with mature manufacturing and setup practices, make them indispensable in combating material deterioration throughout heavy industries.
As material scientific research breakthroughs and electronic monitoring ends up being more incorporated, the future generation of wise, resilient alumina-based systems will certainly even more enhance operational effectiveness and sustainability in rough environments.
