1. Material Basics and Crystallographic Quality
1.1 Phase Make-up and Polymorphic Actions

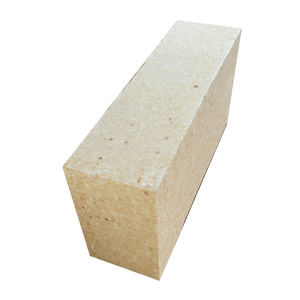

(Alumina Ceramic Blocks)
Alumina (Al ₂ O FIVE), particularly in its α-phase type, is among the most widely utilized technical ceramics due to its outstanding balance of mechanical strength, chemical inertness, and thermal security.
While light weight aluminum oxide exists in a number of metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically stable crystalline framework at heats, defined by a thick hexagonal close-packed (HCP) arrangement of oxygen ions with aluminum cations inhabiting two-thirds of the octahedral interstitial sites.
This purchased structure, called diamond, provides high latticework power and solid ionic-covalent bonding, resulting in a melting factor of around 2054 ° C and resistance to stage improvement under extreme thermal conditions.
The transition from transitional aluminas to α-Al two O ₃ normally takes place over 1100 ° C and is come with by significant quantity shrinkage and loss of area, making phase control critical throughout sintering.
High-purity α-alumina blocks (> 99.5% Al ₂ O SIX) display remarkable efficiency in serious atmospheres, while lower-grade compositions (90– 95%) may include additional phases such as mullite or glassy grain boundary phases for economical applications.
1.2 Microstructure and Mechanical Honesty
The performance of alumina ceramic blocks is exceptionally influenced by microstructural functions consisting of grain size, porosity, and grain border cohesion.
Fine-grained microstructures (grain dimension < 5 µm) generally give higher flexural strength (as much as 400 MPa) and enhanced fracture toughness contrasted to grainy counterparts, as smaller sized grains hinder split propagation.
Porosity, also at low levels (1– 5%), significantly minimizes mechanical toughness and thermal conductivity, necessitating complete densification via pressure-assisted sintering techniques such as hot pushing or warm isostatic pressing (HIP).
Additives like MgO are typically presented in trace amounts (≈ 0.1 wt%) to inhibit abnormal grain development throughout sintering, guaranteeing uniform microstructure and dimensional stability.
The resulting ceramic blocks show high solidity (≈ 1800 HV), outstanding wear resistance, and reduced creep rates at elevated temperatures, making them appropriate for load-bearing and abrasive environments.
2. Manufacturing and Handling Techniques

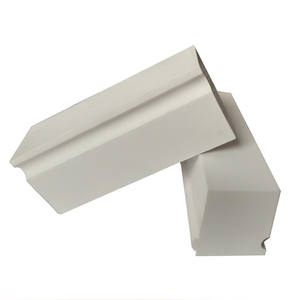

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Techniques
The production of alumina ceramic blocks starts with high-purity alumina powders derived from calcined bauxite through the Bayer process or manufactured through precipitation or sol-gel courses for higher pureness.
Powders are milled to accomplish slim particle dimension circulation, improving packaging thickness and sinterability.
Shaping right into near-net geometries is achieved through different forming methods: uniaxial pressing for easy blocks, isostatic pushing for uniform density in complex shapes, extrusion for lengthy sections, and slide casting for detailed or huge components.
Each technique affects eco-friendly body thickness and homogeneity, which straight effect final homes after sintering.
For high-performance applications, progressed developing such as tape casting or gel-casting might be utilized to achieve superior dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperatures between 1600 ° C and 1750 ° C allows diffusion-driven densification, where bit necks grow and pores shrink, leading to a completely dense ceramic body.
Environment control and precise thermal accounts are important to avoid bloating, bending, or differential shrinkage.
Post-sintering procedures include ruby grinding, lapping, and polishing to achieve tight resistances and smooth surface finishes needed in securing, moving, or optical applications.
Laser cutting and waterjet machining enable exact modification of block geometry without causing thermal stress.
Surface treatments such as alumina coating or plasma splashing can additionally boost wear or deterioration resistance in customized service problems.
3. Practical Features and Efficiency Metrics
3.1 Thermal and Electric Habits
Alumina ceramic blocks exhibit moderate thermal conductivity (20– 35 W/(m · K)), dramatically more than polymers and glasses, making it possible for effective warm dissipation in electronic and thermal management systems.
They keep structural stability up to 1600 ° C in oxidizing environments, with reduced thermal growth (≈ 8 ppm/K), contributing to outstanding thermal shock resistance when properly developed.
Their high electrical resistivity (> 10 ¹⁴ Ω · cm) and dielectric stamina (> 15 kV/mm) make them ideal electric insulators in high-voltage environments, including power transmission, switchgear, and vacuum systems.
Dielectric consistent (εᵣ ≈ 9– 10) stays stable over a broad frequency range, sustaining use in RF and microwave applications.
These buildings enable alumina blocks to operate accurately in settings where organic products would break down or fall short.
3.2 Chemical and Ecological Resilience
One of the most valuable characteristics of alumina blocks is their outstanding resistance to chemical assault.
They are highly inert to acids (except hydrofluoric and hot phosphoric acids), antacid (with some solubility in strong caustics at raised temperature levels), and molten salts, making them appropriate for chemical processing, semiconductor fabrication, and pollution control devices.
Their non-wetting habits with several liquified metals and slags permits use in crucibles, thermocouple sheaths, and heater linings.
In addition, alumina is safe, biocompatible, and radiation-resistant, expanding its utility right into medical implants, nuclear shielding, and aerospace parts.
Minimal outgassing in vacuum cleaner atmospheres further certifies it for ultra-high vacuum cleaner (UHV) systems in research and semiconductor manufacturing.
4. Industrial Applications and Technical Combination
4.1 Architectural and Wear-Resistant Elements
Alumina ceramic blocks act as important wear parts in markets ranging from extracting to paper manufacturing.
They are utilized as linings in chutes, hoppers, and cyclones to withstand abrasion from slurries, powders, and granular materials, substantially extending life span contrasted to steel.
In mechanical seals and bearings, alumina obstructs give low friction, high firmness, and corrosion resistance, decreasing upkeep and downtime.
Custom-shaped blocks are incorporated into reducing devices, passes away, and nozzles where dimensional security and edge retention are critical.
Their light-weight nature (density ≈ 3.9 g/cm THREE) likewise adds to power cost savings in relocating parts.
4.2 Advanced Design and Arising Uses
Beyond traditional duties, alumina blocks are progressively used in advanced technological systems.
In electronics, they function as protecting substratums, warm sinks, and laser cavity elements as a result of their thermal and dielectric residential properties.
In power systems, they work as strong oxide gas cell (SOFC) components, battery separators, and blend activator plasma-facing materials.
Additive manufacturing of alumina via binder jetting or stereolithography is emerging, enabling complex geometries formerly unattainable with conventional forming.
Hybrid frameworks incorporating alumina with steels or polymers with brazing or co-firing are being established for multifunctional systems in aerospace and protection.
As material scientific research advances, alumina ceramic blocks continue to develop from easy architectural elements into energetic parts in high-performance, sustainable design solutions.
In recap, alumina ceramic blocks stand for a fundamental class of sophisticated porcelains, incorporating durable mechanical efficiency with phenomenal chemical and thermal security.
Their versatility throughout commercial, digital, and scientific domains emphasizes their long-lasting worth in modern design and innovation growth.
