1. Basic Structure and Product Composition
1.1 The Nanoscale Style of Aerogels

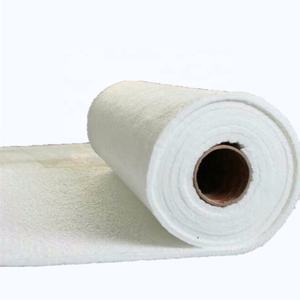

(Aerogel Blanket)
Aerogel coverings are sophisticated thermal insulation products built upon an unique nanostructured structure, where a solid silica or polymer network spans an ultra-high porosity quantity– typically exceeding 90% air.
This framework originates from the sol-gel procedure, in which a fluid forerunner (often tetramethyl orthosilicate or TMOS) goes through hydrolysis and polycondensation to create a wet gel, adhered to by supercritical or ambient stress drying to remove the liquid without falling down the fragile permeable network.
The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in size) developing pores on the range of 10– 50 nm, little enough to suppress air molecule motion and therefore reduce conductive and convective warm transfer.
This phenomenon, called Knudsen diffusion, dramatically lowers the effective thermal conductivity of the material, frequently to values between 0.012 and 0.018 W/(m · K) at space temperature– amongst the lowest of any solid insulator.
In spite of their reduced density (as reduced as 0.003 g/cm ³), pure aerogels are naturally breakable, requiring reinforcement for useful use in versatile blanket type.
1.2 Support and Composite Layout
To get rid of frailty, aerogel powders or pillars are mechanically integrated right into fibrous substratums such as glass fiber, polyester, or aramid felts, creating a composite “covering” that keeps phenomenal insulation while obtaining mechanical effectiveness.
The reinforcing matrix gives tensile strength, adaptability, and handling durability, making it possible for the material to be cut, curved, and installed in intricate geometries without substantial performance loss.
Fiber content generally ranges from 5% to 20% by weight, very carefully stabilized to decrease thermal linking– where fibers perform heat throughout the blanket– while making sure structural stability.
Some progressed designs include hydrophobic surface therapies (e.g., trimethylsilyl groups) to prevent moisture absorption, which can degrade insulation performance and promote microbial development.
These alterations permit aerogel coverings to keep stable thermal properties even in damp environments, increasing their applicability past regulated lab conditions.
2. Manufacturing Processes and Scalability

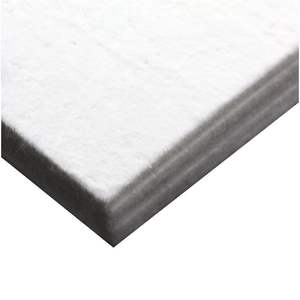

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The production of aerogel coverings begins with the formation of a wet gel within a coarse mat, either by fertilizing the substratum with a fluid forerunner or by co-forming the gel and fiber network simultaneously.
After gelation, the solvent must be gotten rid of under problems that prevent capillary stress from collapsing the nanopores; historically, this required supercritical carbon monoxide ₂ drying out, a costly and energy-intensive process.
Recent advances have allowed ambient stress drying with surface alteration and solvent exchange, significantly lowering manufacturing expenses and enabling continual roll-to-roll manufacturing.
In this scalable procedure, lengthy rolls of fiber mat are continually covered with precursor remedy, gelled, dried out, and surface-treated, allowing high-volume output suitable for industrial applications.
This shift has been critical in transitioning aerogel coverings from specific niche lab products to commercially sensible products used in building and construction, energy, and transport markets.
2.2 Quality Control and Performance Uniformity
Ensuring uniform pore structure, constant thickness, and dependable thermal performance across large manufacturing batches is crucial for real-world deployment.
Suppliers utilize rigorous quality control procedures, consisting of laser scanning for thickness variant, infrared thermography for thermal mapping, and gravimetric analysis for dampness resistance.
Batch-to-batch reproducibility is vital, particularly in aerospace and oil & gas industries, where failing due to insulation breakdown can have serious repercussions.
Additionally, standard testing according to ASTM C177 (warm circulation meter) or ISO 9288 makes sure accurate reporting of thermal conductivity and enables reasonable comparison with standard insulators like mineral woollen or foam.
3. Thermal and Multifunctional Characteristic
3.1 Superior Insulation Across Temperature Level Ranges
Aerogel coverings exhibit outstanding thermal performance not only at ambient temperature levels but also across severe arrays– from cryogenic conditions listed below -100 ° C to heats going beyond 600 ° C, depending upon the base product and fiber type.
At cryogenic temperatures, standard foams might split or lose effectiveness, whereas aerogel coverings continue to be versatile and preserve low thermal conductivity, making them ideal for LNG pipes and tank.
In high-temperature applications, such as industrial heaters or exhaust systems, they supply effective insulation with reduced thickness contrasted to bulkier choices, saving area and weight.
Their reduced emissivity and capacity to show induction heat even more enhance performance in glowing barrier setups.
This large functional envelope makes aerogel blankets uniquely versatile among thermal monitoring solutions.
3.2 Acoustic and Fireproof Features
Past thermal insulation, aerogel coverings demonstrate notable sound-dampening residential properties due to their open, tortuous pore structure that dissipates acoustic power through viscous losses.
They are progressively used in automotive and aerospace cabins to minimize sound pollution without including considerable mass.
Moreover, most silica-based aerogel blankets are non-combustible, achieving Course A fire rankings, and do not launch toxic fumes when exposed to flame– crucial for constructing safety and security and public framework.
Their smoke density is incredibly low, improving visibility throughout emergency situation emptyings.
4. Applications in Industry and Arising Technologies
4.1 Energy Effectiveness in Structure and Industrial Systems
Aerogel coverings are changing energy efficiency in style and industrial engineering by enabling thinner, higher-performance insulation layers.
In structures, they are used in retrofitting historic frameworks where wall thickness can not be increased, or in high-performance façades and windows to reduce thermal bridging.
In oil and gas, they protect pipelines lugging hot fluids or cryogenic LNG, lowering energy loss and preventing condensation or ice development.
Their light-weight nature additionally decreases architectural tons, particularly useful in overseas systems and mobile units.
4.2 Aerospace, Automotive, and Customer Applications
In aerospace, aerogel blankets secure spacecraft from extreme temperature level variations during re-entry and shield sensitive tools from thermal cycling in space.
NASA has actually used them in Mars wanderers and astronaut fits for easy thermal law.
Automotive makers integrate aerogel insulation right into electric automobile battery loads to prevent thermal runaway and enhance safety and efficiency.
Consumer items, consisting of exterior apparel, footwear, and camping equipment, currently feature aerogel cellular linings for exceptional heat without bulk.
As production expenses decline and sustainability boosts, aerogel coverings are positioned to end up being traditional solutions in worldwide initiatives to minimize power consumption and carbon emissions.
Finally, aerogel coverings stand for a convergence of nanotechnology and functional engineering, supplying unequaled thermal efficiency in a flexible, resilient style.
Their ability to save energy, area, and weight while preserving safety and security and environmental compatibility positions them as crucial enablers of lasting technology across diverse sectors.
