Bearings are commonly called the “joints of industry.” Obtaining the choice right directly influences your tools’s integrity, service life, and maintenance costs. Lots of bearing failings don’t originate from low quality– they originate from wrong choices. Points like lots computation mistakes, overlooking rate restrictions, or picking the wrong lubrication approach. These little mistakes can create tools to break down early in its service life. This overview walks you via the entire selection procedure, providing engineers and purchase professionals a clear path from assessing working conditions to validating the appropriate bearing design.
Part One: What You Required to Know Before Beginning
Before you open any bearing directory, ask on your own one question: Just what does this equipment need the bearing to do? The solution hinges on five essential locations:
1. Lots Features
Load is the primary factor in bearing selection. You require to identify three points:
Instructions: Is it radial tons (perpendicular to the shaft), axial lots (alongside the shaft), or a combination of both?
Dimension: Is it light, moderate, or heavy? Any influence tons?
Nature: Is the lots constant or changing? How commonly do effect tons happen and exactly how strong are they?
Take a belt conveyor as an example. The bearings at the drive end tackle radial loads from belt tension, the weight of the belt and rollers, plus the shaft setting up. When determining, you need to think about various operating problems– startup, regular operating, braking– and use the worst-case circumstance for your style.
2. Rate Conditions
(bearings for steel mill)
Rate is another crucial element affecting birthing life. According to tiredness life concept, birthing life has an inverse relationship with rate. For variable speed conditions, you require to determine the comparable speed. Take a rotary kiln support roller– its rate might range from 0.5 to 2.5 r/min. You ‘d require to weight the running time at each speed to obtain a comparable value.
One point to watch out for: recognizing only the optimum rate can screw up your lubrication method. The lube you pick based on top speed could not develop a correct oil movie at reduced rates. Additionally, if your machine has long still durations, you should state that– otherwise nearby devices resonances could create false brinelling damages.
3. Required Service Life
Birthing service life is generally revealed as L10h (the variety of hours that 90% of a bearing team will get to prior to exhaustion spalling appears). An usual mistake is opting for an extremely long life– when L10h goes beyond 100,000 hours, the bearing dimension gets too big. It ends up being more challenging to lubricate, torque boosts, and it comes to be a lot more sensitive to minimum tons. In the end, it could fail for factors besides fatigue.
4. Area Restraints
You ought to understand your available room limits from the beginning– shaft size variety, housing bore dimension, axial length limitations. As soon as you recognize the matching shaft size and readily available space, you can swiftly limit your alternatives.
5. Running Accuracy Requirements
A lot of applications do just great with basic accuracy bearings. But also for high-speed or high-precision equipment like device spindles, you’ll require P5, P4, or even greater qualities. Simply keep in mind that going for greater accuracy without a genuine demand will increase costs considerably. Match the quality to your real needs.
Part Two: Matching Bearing Kinds to Functioning Conditions
Once you have those parameters clear, the following step is to match the best bearing type based on lots instructions, dimension, speed, and imbalance tolerance.
1. Lots Instructions: Radial, Axial, or Incorporated?

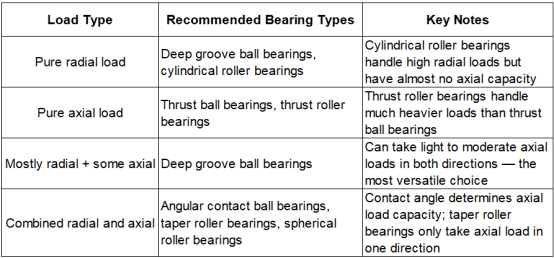

This is one of the most standard filter. It can direct you to a few candidates today:
When the axial-to-radial lots proportion (Fa/Fr) modifications, your selection logic adjustments also. At low ratios, opt for deep groove ball bearings. At moderate proportions, use small-contact-angle angular contact bearings or taper roller bearings. At high ratios, you’ll need large-contact-angle bearings, or consider integrating a thrust bearing with a radial bearing.
( Radial)
2. Lots Dimension: Sphere Bearings or Roller Bearings?
This is a classic choice:
Light or modest loads: Select sphere bearings (deep groove or angular get in touch with). The point contact in between rounds and raceways offers reduced rubbing, making them ideal for medium to high speeds.
Hefty or impact tons: You have to make use of roller bearings (cylindrical, round, or taper). Line get in touch with between rollers and raceways gives much greater lots ability and far better influence resistance.
3. Speed: Round Bearings for High Speed, Roller Bearings for Low
Usually talking, ball bearings have higher rate limits than roller bearings. For high-speed applications (above 1000 r/min), placed sphere bearings at the top of your list. When you need the highest feasible rate with pure radial tons, open deep groove sphere bearings are your best option. For integrated tons at high speed, angular contact sphere bearings are the way to go.
Round roller bearings, taper roller bearings, and needle bearings have reasonably lower rate limits. They’re mostly suited for low-to-medium rate, heavy-load problems.
4. Imbalance Tolerance: Do You Required Self-Aligning?
This set frequently gets neglected yet it’s incredibly essential. You should take into consideration self-aligning bearings when:
Birthing housing bores do not align well
The shaft isn’t stiff adequate and bends during procedure
The bearing span is long and thermal expansion causes angular misalignment
You’re using different split real estates (like cushion block bearings)
Spherical roller bearings and spherical sphere bearings have concave outer ring raceways. This enables a particular quantity of angular imbalance between the inner and outer rings without unsafe side stress. They can make up for both vibrant deflection and fixed setup errors.
On the other hand, round roller bearings, taper roller bearings, and needle bearings have really limited self-aligning ability. Also a tiny angular misalignment can trigger anxiety concentration at the roller finishes, bring about high side pressures that dramatically shorten birthing life. Deep groove ball bearings do have some self-aligning capability, however the allowable angle is small– surpassing it will reduce life as well.
5. Axial Development Compensation: Fixed End or Drifting End?
Lengthy shafts expand and contract with temperature level adjustments during procedure. That means you need to establish your bearing arrangement with one set end and one drifting end.
NU and N series cylindrical roller bearings have no flanges on the internal ring (or on one side). This lets the shaft step freely in the axial direction relative to the real estate– making them suitable as floating-end bearings. NJ and NUP series can offer axial positioning in one or both instructions, so they function well as fixed-end bearings. This arrangement is very usual in gearboxes and electrical motors.

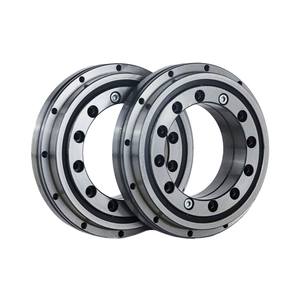

Part Three: BMB Line Of Product at a Look

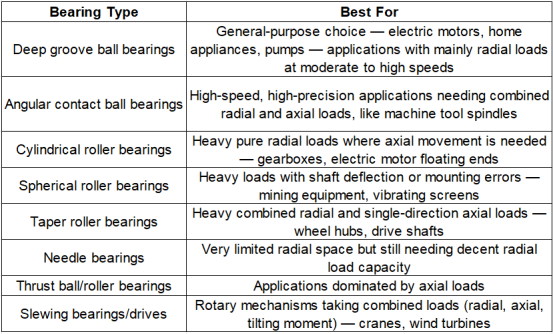

BMB offers a total variety of commercial bearings, covering all the major kinds we’ve reviewed. This fast reference table links the option principles over directly to certain product groups:
Component 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Precision Grades
Requirement accuracy (P0) helps the huge bulk of general machinery. For precision equipment like machine device pins or aerospace elements, you’ll require P5 or higher. Tighter precision suggests tighter dimensional tolerances and far better running accuracy– but additionally greater expenses.
2. Inner Clearance and Preload
Bearings need to maintain proper internal clearance after installation. Way too much clearance causes vibration and sound. Insufficient, and thermal expansion can create the bearing to confiscate. In special cases like maker tool pins, preload (using adverse clearance) is utilized to improve system strength and rotational precision.
3. Lube Selection
Lubrication is a make-or-break element for bearing life. Oil works for the majority of moderate-speed and temperature applications– it’s straightforward to secure and can run maintenance-free for extended periods. Oil (oil bath, oil haze, jet lubrication) is much better for high-speed or high-temperature conditions, as it dissipates heat better. When picking a lube, check the rate variable (ndm worth). Don’t simply choose based upon optimum speed– the oil you pick might not form an appropriate film at reduced rates.
4. Securing Program
Choose the seal kind based on your setting: call seals maintain dirt out well however add some friction; non-contact seals help broadband however offer less defense against contamination; open bearings count on external sealing systems.
Component 5: Life Computation– From Concept to Method
( or Combined Basic Filter Table)
At the end of the day, you need to verify whether your selected bearing will in fact fulfill the anticipated life span. This is where fundamental rating life calculation can be found in.
The standard score life L10 formula (ISO 281 standard):
For ball bearings: L10 = (C/P) FIVE × (10 SIX/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: standard vibrant lots rating (kN)– found in the item directory
P: comparable dynamic tons (kN)– takes both radial and axial lots right into account
The equal vibrant tons P is determined as: P = X · Fr + Y · Fa
Fr is the radial tons, Fa is the axial tons
X and Y are coefficients that depend upon bearing kind and the Fa/Fr ratio– check the catalog for these values
For more requiring problems, you can apply modification factors: Ln = a1 × a2 × a3 × L10
a1 is the dependability element (a1 = 1 for 90% reliability, about 0.21 for 99%)
a2 is the product element (premium bearing steel can get to 1.5 to 2)
a3 is the operating problems variable (excellent lubrication and tidiness can offer 2 to 3)
With this computation, engineers can verify that the selected bearing meets the needed service life. It also helps compare multiple choices and make data-driven choices.
This overview has strolled you with the complete selection path– from evaluating working problems, to matching the right bearing kind, to verifying life expectancy. Understanding and using this method will certainly aid you make accurate, efficient, and economical bearing choices across a variety of commercial applications.
